Water cooling laser welder PT26-W08 Series-PANTOP machinery and equipment

Water cooling laser welder PT26-W08 Series

Portable 1500W 2000W 3000W Laser Welding Machine With Cutting, Cleaning, And Weld Cleaning Functions For Metal...

Send Inquiry

Integrated 4 in 1 Laser Welding Machine

Ø All Parts Integrated New Design, All Moved 1 Stop , Labor Saving

Ø 4 Functions in 1:Welding , Cleaning , Cutting , Weld Cleaning

Ø 100,000 Hours Service Life Full Power Laser Source

Ø New Design Wire Feeder , Screen and Button Combined

Ø No.1 Brand Welding Gun in China / SUP

Ø 19 Languages Operating System , with alert and Troubleshooting

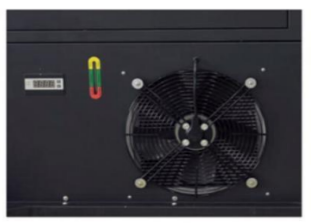

New Design Custom Made / Large Volume Water Chiller

l Integrated Built in Design

l Constant temperature 23-28℃

l Long Time Continuous Working Never Overheat

4 Functions in 1

- Welding , Cleaning , Cutting , Weld Cleaning

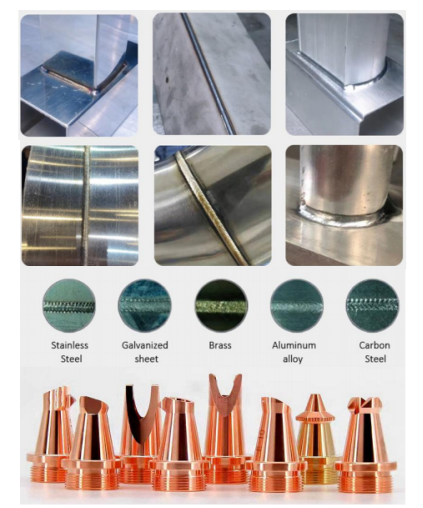

For Different Materials

Stainless Steel , Carbon Steel , Brass , Aluminum , Galvanized Steel etc .

8+1 Nozzles for Different Welding / Cutting Models

l Flat Welding / Round Welding

l Internal Fillet Welding / External Fillet Welding

l Corner Welding / Special-shaped Welding

l Continuous Welding / Spot Welding

l Fish Scale Welding

l Cutting and Cleaning

Main Specification
Item	Specification
Model No.	PT26-08W Series 1500W / 2000W/3000W
Power Regulation	10 - 100%
Scan Width	0-6mm
Power Demand :	1500W 2000W - Single Phase 220V/50HZ/60HZ / / As Requirement 3000W - 3Phase 380V/50HZ/60HZ / As Requirement
Laser Source :	Power : 1500W / 2000W / 3000W Brand : MAX / BWT
Suitable Material :	Welding : Carbon Steel , Stainless Steel , Aluminum , Copper , Brass , Alloy etc. Cleaning : Oil Stains , Oxide Layer etc.
Max Welding Thickness :	8mm / 15mm

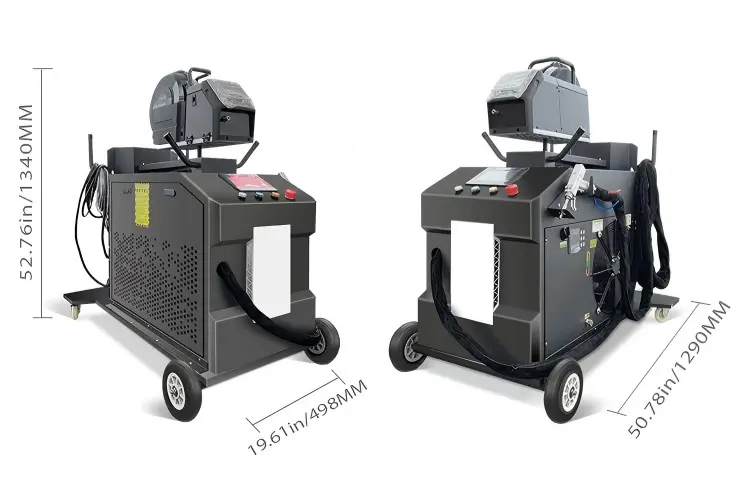

Net Dimension / Weight :	1500W / 2000W/ 3000W: 13407901070MM / 205Kgs
Packing Dimension / Weight :	1500W / 2000W/ 3000W: 1100 X 950 X 1500 1.6M3/ 250Kgs

Get a customized quote with your specific requirements. Our engineers will help you choose the suitable model!

Email: sales@pantopmachinery.com
